Wheel Loaders Available for Rental

Caterpillar966H

Medium Wheel Loader

23.7 t
Operating Weight: 195 kW
Net Power: 3.4-4.2 m³
Bucket Capacity: 15.5 t
Tipping Load (Full Turn)

Get a Quote Check Availability

Certified operator and rigger available
Third-party inspected and load tested
Lift plan and permits handled for you

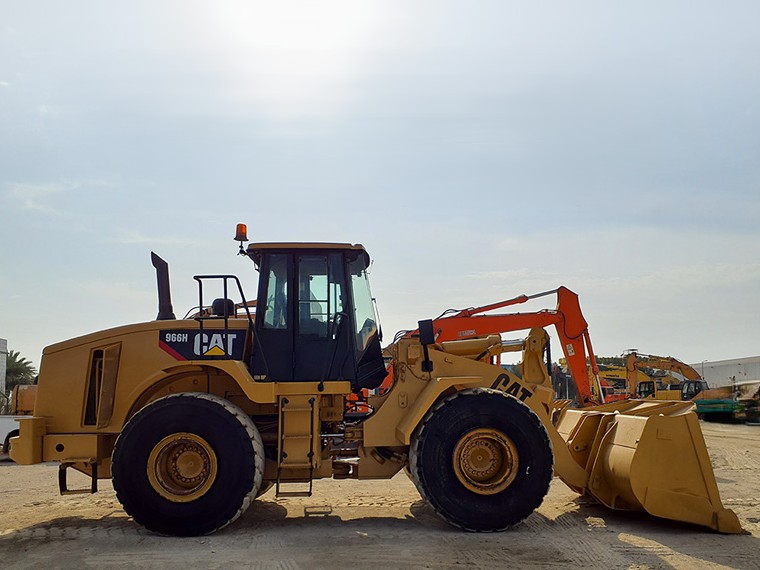

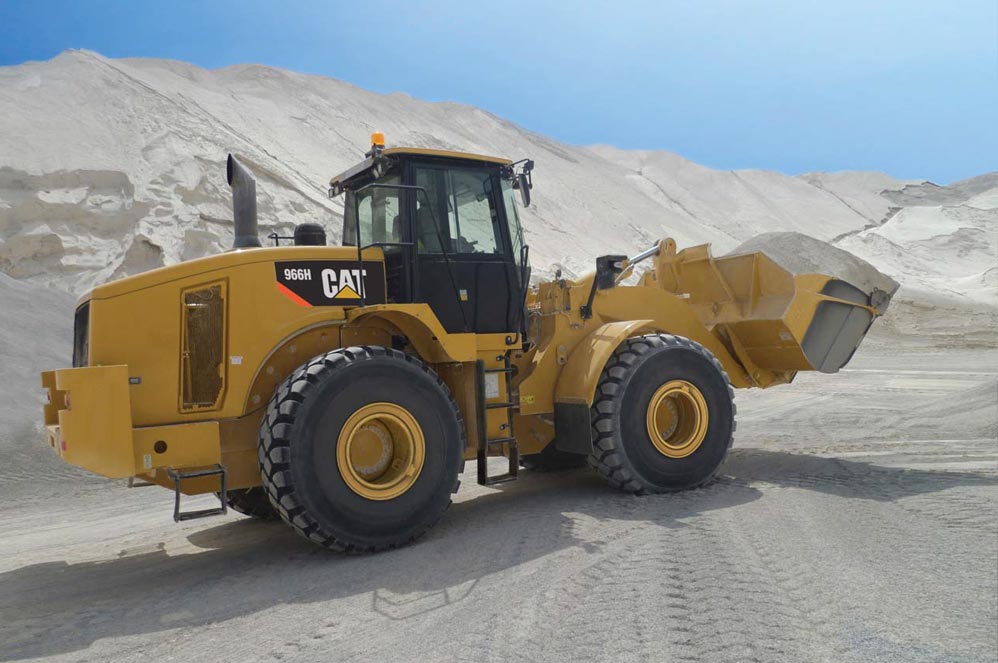

About the Caterpillar 966H

The Caterpillar 966H is a medium wheel loader with an operating weight of about 23.7 tonnes, powered by a Cat C11 ACERT engine rated at 195 kW net. It handles buckets from 3.4 to 4.2 m³ for loading trucks, stockpiling aggregate and moving fill on construction and site preparation work. The machine has a full-turn static tipping load of 15,474 kg and travels at up to 37.4 km/h between work areas on site.

At Red Tiger Heavy Equipment Rental, our Caterpillar 966H comes fully maintained, OSHAD-compliant, and is available for immediate deployment. With our 24/7 emergency support, you can trust that your project will be executed with maximum efficiency.

Typical Applications

EarthmovingLoading trucks, stockpiling and backfilling
Quarries & AggregatesHandling sand, gravel and crushed stone
Site PreparationClearing, levelling and material moves on construction sites
Yards & PortsBulk material handling and general yard work

Technical Specifications

Manufacturer: Caterpillar
Model: 966H
Fleet Unit Year: 2010
Operating weight: 23,698 kg (52,254 lb)
Engine: Cat C11 ACERT, 6-cylinder, 11.1 L
Net power (ISO 9249): 195 kW (262 hp)
Gross power (SAE J1995): 213 kW (286 hp)
Peak torque: 1,215 Nm at 1,400 rpm
Bucket capacity range: 3.4 to 4.2 m³ (4.5 to 5.5 yd³)
Reference bucket: 3.5 m³ (4.58 yd³)
Static tipping load, full turn: 15,474 kg (34,120 lb)
Breakout force (reference bucket): 216 kN
Dump clearance at max lift: 3.005 m
Reach at max lift and dump: approx. 1.30 m (4.25 ft)
Max travel speed: 37.4 km/h (23.2 mph) forward and reverse
Overall length, bucket on ground: approx. 8.86 m (29.08 ft)
Width over tyres: approx. 2.95 m (9.67 ft)
Height to top of ROPS/cab: 3.60 m
Wheelbase: 3,450 mm
Fuel tank: approx. 380 L (100.4 US gal)

Request Load Chart

Capacities vary with boom, ballast and outrigger configuration. Our engineers confirm figures for your lift.

Questions About This Machine

Rates depend on duration, site and whether you need an operator. Ask and we'll price it.

01What is the bucket capacity of the Caterpillar 966H?

The Caterpillar 966H is fitted with a general-purpose bucket rated at approximately 3.5 m³, paired with an operating weight of around 23,700 kg and a 195 kW (262 hp) ACERT engine. Contact our team for full technical specifications and available bucket/attachment options.

02How many axles does the Caterpillar 966H have?

The Caterpillar 966H rides on a standard 2-axle, 4-wheel-drive wheel loader chassis. Contact our team or request the technical spec sheet for precise dimensions and transport details.

03Is this wheel loader available for rent in Dubai?

Yes! Red Tiger Heavy Equipment Rental maintains the Caterpillar 966H in our Dubai fleet. Contact us for availability, rates, and to schedule a site visit.

04What certifications does Red Tiger provide with equipment rentals?

All our equipment comes with OSHAD certification, Dubai Municipality approval, and Trakhees licensing. We also provide trained operators, comprehensive method statements, and full documentation packages for every project.

05Can I get a custom method statement for my project?

Absolutely. Our engineers develop detailed, OSHAD-compliant method statements and risk assessments for every project. This is provided as standard for all equipment rentals.
