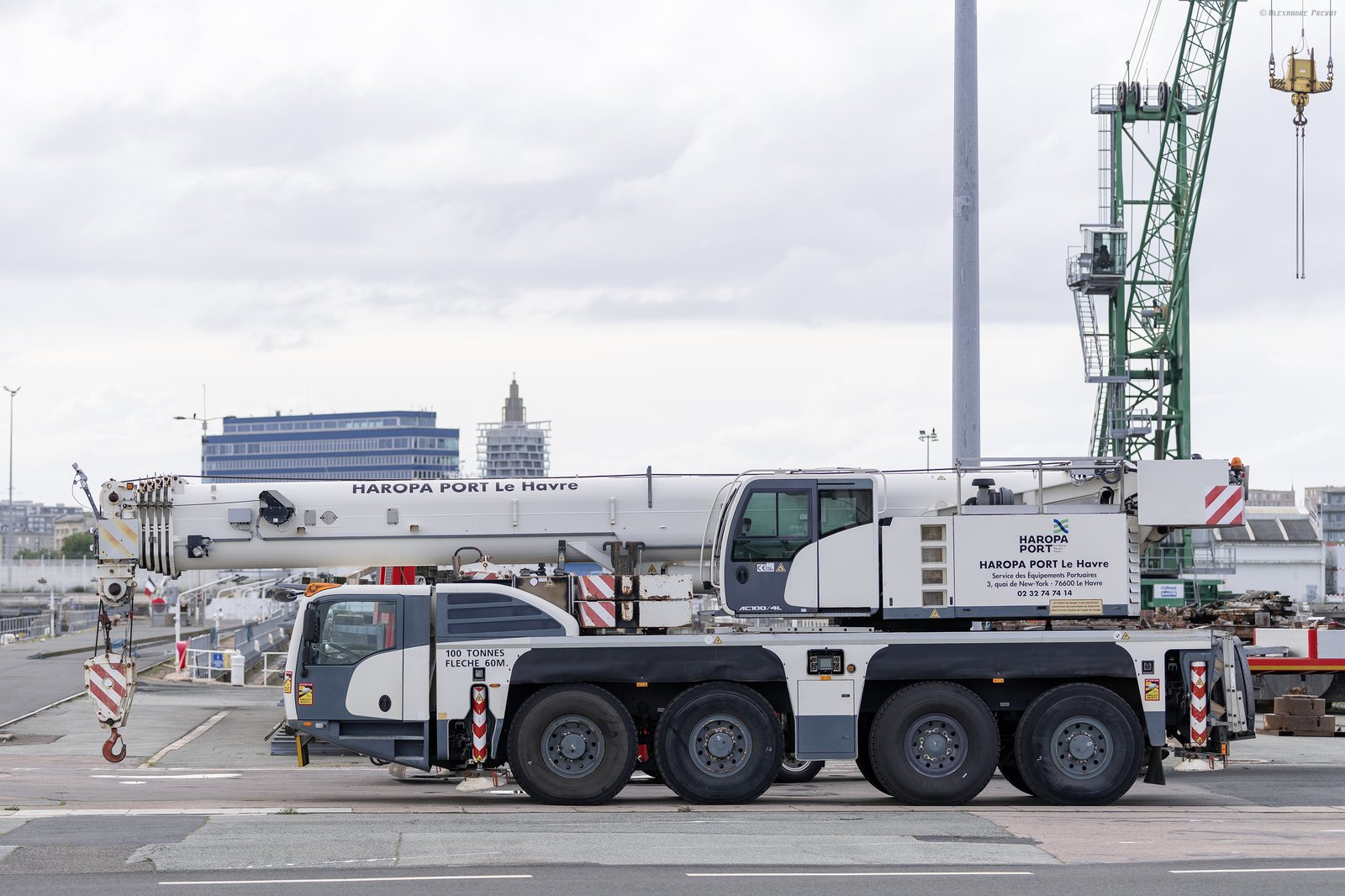

Reference photos of this model. Photo: Alexandre Prevot, CC BY-SA 2.0, via Wikimedia Commons

Mobile Cranes Available for Rental

Tadano DemagAC 100-4L

100-Tonne 4-Axle All Terrain Crane

100 t
Max Capacity: 59.4 m
Main Boom: 81.7 m
Max Tip Height: 24.5 t
Max Counterweight

Certified operator and rigger available
Third-party inspected and load tested
Lift plan and permits handled for you

About the Tadano Demag AC 100-4L

The Demag AC 100-4L is a 4-axle all terrain crane with 100 t maximum capacity and a 59.4 m main boom, built under the Terex and later Tadano Demag names. At 2.55 m wide it was marketed as the most compact crane in the 100-tonne class. Folding jibs of 10 m or 19 m take the maximum tip height to 81.7 m, and the carrier is powered by a 335 kW OM 460 LA engine.

At Red Tiger Heavy Equipment Rental, our Tadano Demag AC 100-4L comes fully maintained, OSHAD-compliant, and is available for immediate deployment. With our 24/7 emergency support, you can trust that your project will be executed with maximum efficiency.

Typical Applications

Building ConstructionStructural steel, precast, HVAC units and rooftop plant
Industrial InstallationSetting plant equipment, transformers, tanks and vessels
Infrastructure ProjectsBridge beams, metro, road and utility works
Tower Crane ErectionAssembly and dismantling of tower cranes

Technical Specifications

Manufacturer: Tadano Demag
Model: AC 100-4L
Fleet Unit Year: 2020
Machine Type: All Terrain Crane
Max Lifting Capacity: 100 t (120 USt)
Main Boom Length: 12.0 - 59.4 m
Jib / Extension Length: 10 m or 19 m folding swing-away jib; 8 m variable extension; 1.5 m runner
Max Tip Height (with jib): 81.7 m
Drive / Steering: 8 x 6 x 8, all 4 axles steered (8 x 8 x 8 optional)
Number of Axles: 4
Carrier Engine: MTU (Mercedes-Benz) OM 460 LA diesel, Euromot 3a / Tier 3
Engine Power: 335 kW (455 hp) carrier; 129 kW (175 hp) superstructure engine
Max Travel Speed: 80 or 85 km/h (factory-programmed speed limit)
Max Counterweight: 24.5 t (7 pieces)
Overall Length: approx. 13.8 m
Overall Width: 2.55 m

Request Load Chart

Capacities vary with boom, ballast and outrigger configuration. Our engineers confirm figures for your lift.

Questions About This Machine

Rates depend on duration, site and whether you need an operator. Ask and we'll price it.

01What is the maximum lifting capacity of the Tadano Demag AC 100-4L?

The Tadano Demag AC 100-4L has a maximum lifting capacity of 100t. Exact capacity varies based on boom configuration, outrigger setup, and ballast configuration — contact our engineers for a load chart specific to your lift radius.

02How many axles does this crane have?

The Tadano Demag AC 100-4L rides on a compact 4-axle chassis just 2.55m wide — the narrowest in its class. Contact our team or request the technical spec sheet for precise chassis and transport details.

03Is this crane available for rent in Dubai?

Yes! Red Tiger Heavy Equipment Rental maintains the Tadano Demag AC 100-4L in our Dubai fleet. Contact us for availability, rates, and to schedule a site visit.

04What certifications does Red Tiger provide with crane rentals?

All our cranes come with OSHAD certification, Dubai Municipality approval, and Trakhees licensing. We also provide LEEA-certified operators, comprehensive lift plans, method statements, and full documentation packages for every project.

05Can I get a custom lift plan for my project?

Absolutely. Our engineers develop detailed, OSHAD-compliant lift plans for every project, including load charts, outrigger calculations, and method statements. This is provided as standard for all crane rentals.
