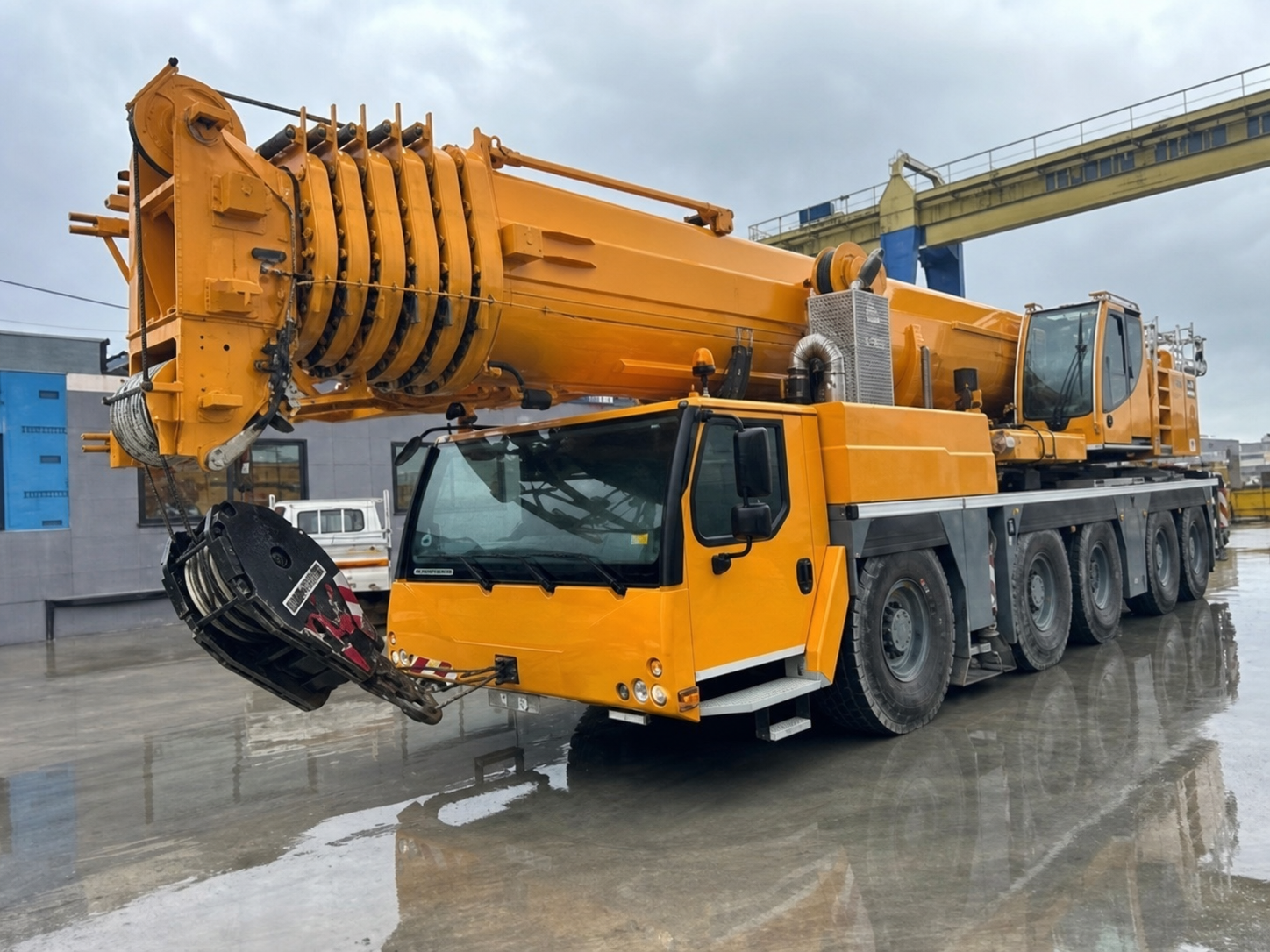

Reference photos of this model. Photo: Im Fokus, CC BY-SA 4.0, via Wikimedia Commons · Photo: K. Krallis, SV1XV, CC BY-SA 3.0, via Wikimedia Commons

Mobile Cranes Available for Rental

LiebherrLTM 1200

200-Tonne All Terrain Crane

200 t
Max Capacity: 72 m
Telescopic Boom: 101 m
Max Hoist Height: 80 m
Max Radius

Get a Quote Check Availability

Certified operator and rigger available
Third-party inspected and load tested
Lift plan and permits handled for you

About the Liebherr LTM 1200

The Liebherr LTM 1200-5.1 is a 5-axle all terrain crane with a maximum capacity of 200 tonnes and a 72 m telescopic boom, the longest in its class at its 2005 launch. With the 36 m double swing-away jib it reaches a lifting height of 101 m and a working radius of 80 m. It is driven by a 370 kW Liebherr diesel engine and uses pneumatic disc brakes on all axles.

At Red Tiger Heavy Equipment Rental, our Liebherr 1200 LTM comes fully maintained, OSHAD-compliant, and is available for immediate deployment. With our 24/7 emergency support, you can trust that your project will be executed with maximum efficiency.

Typical Applications

Building ConstructionStructural steel, precast, HVAC units and rooftop plant
Industrial InstallationSetting plant equipment, transformers, tanks and vessels
Infrastructure ProjectsBridge beams, metro, road and utility works
Tower Crane ErectionAssembly and dismantling of tower cranes

Technical Specifications

Manufacturer: Liebherr
Model: LTM 1200
Fleet Unit Year: 2012
Machine Type: All terrain mobile crane (5-axle)
Max Lifting Capacity: 200 t
Telescopic Boom Length: 72 m (43 ft to 236 ft; 1 base + 6 telescopic sections, Telematik)
Lattice/Folding Jib Length: Double swing-away jib 12.2 m to 36 m (0°, 22.5°, 45°); 7 m telescopic boom extension
Max Hoist Height: 101 m
Max Working Radius: 80 m
Drive / Steering: 10 x 6 x 10 standard (axles 2, 4 and 5 driven), 10 x 8 optional; all axles steered, active speed-dependent rear-axle steering
Number of Axles: 5
Carrier Engine: Liebherr D846 A7, 6-cylinder turbo diesel; ZF AS-Tronic 12-speed with intarder
Engine Power: 370 kW (503 hp); crane engine Liebherr D934S A6, 145 kW
Max Travel Speed: 80 km/h (49.7 mph top gear, 16.00 R 25 tyres)
Max Counterweight: 72 t
Overall Length: 13.38 m chassis length
Overall Width: 3.0 m (445/95 R 25 tyres)
Transport Weight / Axle Load: 60 t, 5 x 12 t axle load

Request Load Chart

Capacities vary with boom, ballast and outrigger configuration. Our engineers confirm figures for your lift.

Questions About This Machine

Rates depend on duration, site and whether you need an operator. Ask and we'll price it.

01What is the maximum lifting capacity of the Liebherr 1200 LTM?

The Liebherr 1200 LTM has a maximum lifting capacity of 200t. Exact capacity varies based on boom configuration, outrigger setup, and ballast configuration — contact our engineers for a load chart specific to your lift radius.

02How many axles does this crane have?

Axle count and chassis configuration vary by unit. Contact our team or request the technical spec sheet for the Liebherr 1200 LTM for precise chassis and transport details.

03Is this crane available for rent in Dubai?

Yes! Red Tiger Heavy Equipment Rental maintains the Liebherr 1200 LTM in our Dubai fleet. Contact us for availability, rates, and to schedule a site visit.

04What certifications does Red Tiger provide with crane rentals?

All our cranes come with OSHAD certification, Dubai Municipality approval, and Trakhees licensing. We also provide LEEA-certified operators, comprehensive lift plans, method statements, and full documentation packages for every project.

05Can I get a custom lift plan for my project?

Absolutely. Our engineers develop detailed, OSHAD-compliant lift plans for every project, including load charts, outrigger calculations, and method statements. This is provided as standard for all crane rentals.
