Mobile Cranes Available for Rental

Terex DemagAC 160-1

160-Tonne 5-Axle All Terrain Crane

160 t
Max Capacity: 64 m
Main Boom: 96 m
Max Tip Height: 5
Axles

Certified operator and rigger available
Third-party inspected and load tested
Lift plan and permits handled for you

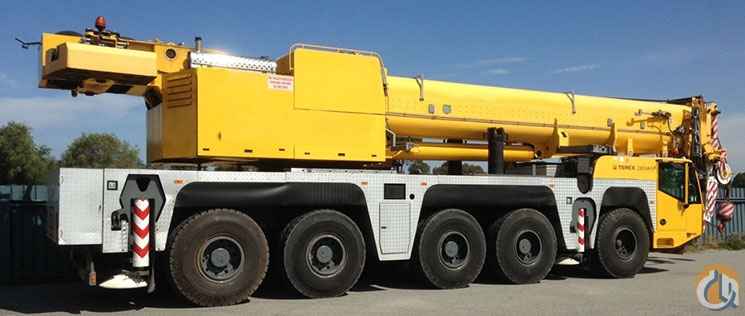

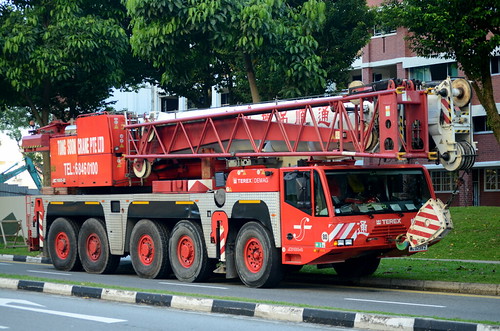

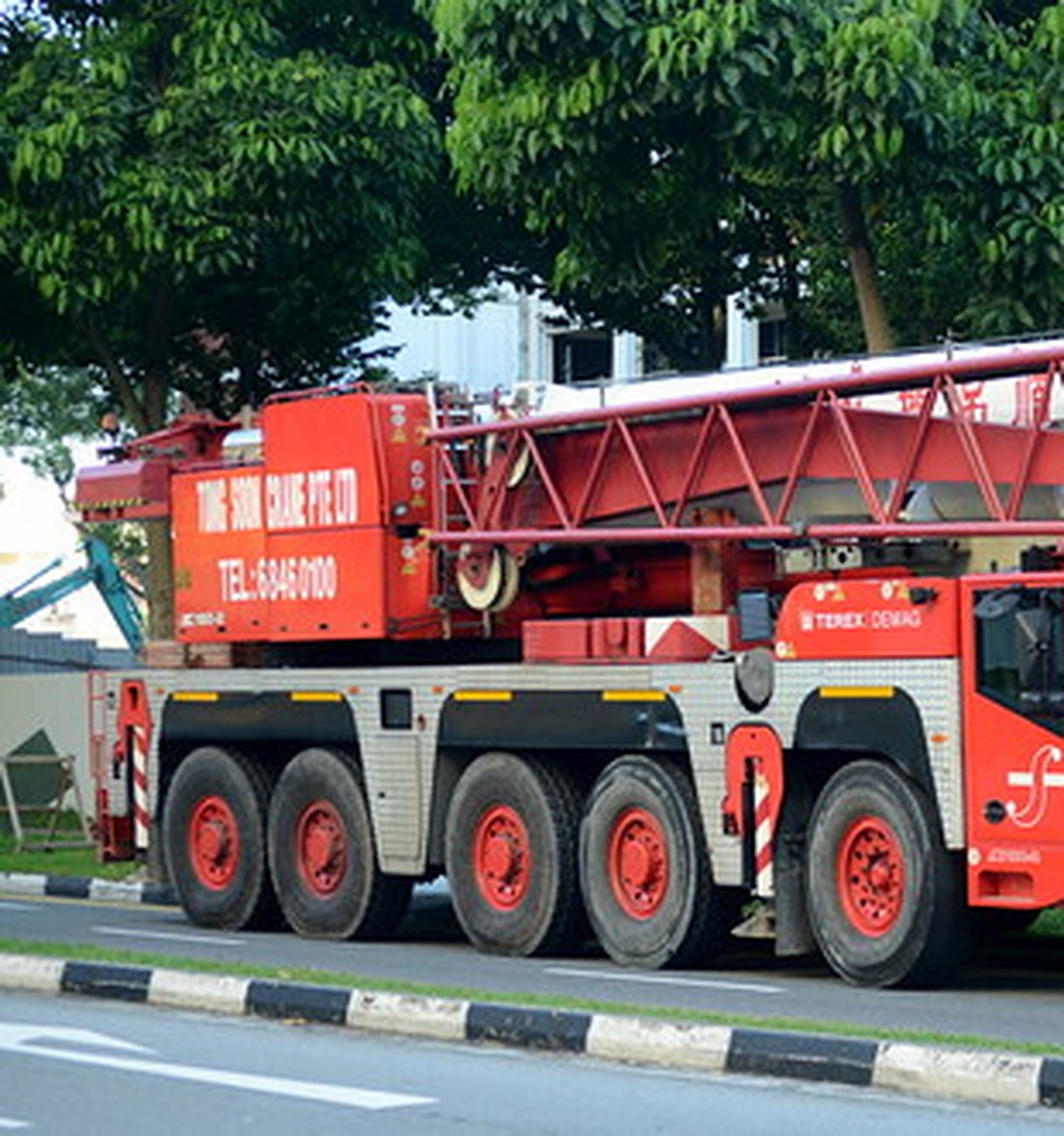

About the Terex Demag AC 160-1

The Terex Demag AC 160-1 is a 5-axle all terrain crane introduced at Intermat 2003, with 160 t maximum capacity and a 64 m main boom. It can travel with 4 t of counterweight at 12 t axle load, and optional extensions from 9 to 33 m are available. The carrier uses a 380 kW DaimlerChrysler OM 502 LA engine with a 16-speed ZF AS-Tronic gearbox.

At Red Tiger Heavy Equipment Rental, our Terex Demag AC 160-1 comes fully maintained, OSHAD-compliant, and is available for immediate deployment. With our 24/7 emergency support, you can trust that your project will be executed with maximum efficiency.

Typical Applications

Building ConstructionStructural steel, precast, HVAC units and rooftop plant
Industrial InstallationSetting plant equipment, transformers, tanks and vessels
Infrastructure ProjectsBridge beams, metro, road and utility works
Tower Crane ErectionAssembly and dismantling of tower cranes

Technical Specifications

Manufacturer: Terex Demag
Model: AC 160-1
Fleet Unit Year: 2008
Machine Type: All Terrain Crane
Max Lifting Capacity: 160 t at 3 m radius
Main Boom Length: 13.1 - 63.9 m (64 m)
Boom Sections: Base section plus 5 telescopic sections (Demag Ovaloid profile)
Jib / Extension Length: 9 - 33 m boom extension (9 / 17 / 25 / 33 m), 0 / 20 / 40 degree offset
Max Tip Height (with jib): 96 m
Drive / Steering: 10 x 8 x 8, speed-dependent rear axle steering
Number of Axles: 5
Carrier Engine: DaimlerChrysler OM 502 LA, water-cooled 8-cylinder diesel
Engine Power: 380 kW (516 hp) carrier; superstructure OM 904 LA, 130 kW (175 hp)
Max Travel Speed: 85 km/h
Max Counterweight: 49.8 t (approx. 50 t, divisible)
Overall Length: 15.12 m
Overall Width: 3.0 m
Gross Vehicle Weight / Axle Load: 60 t total (5 x 12 t) with 4.0 t counterweight on board

Request Load Chart

Capacities vary with boom, ballast and outrigger configuration. Our engineers confirm figures for your lift.

Questions About This Machine

Rates depend on duration, site and whether you need an operator. Ask and we'll price it.

01What is the maximum lifting capacity of the Terex Demag AC 160-1?

The Terex Demag AC 160-1 has a maximum lifting capacity of 160t. Exact capacity varies based on boom configuration, outrigger setup, and ballast configuration — contact our engineers for a load chart specific to your lift radius.

02How many axles does this crane have?

The Terex Demag AC 160-1 rides on a 5-axle, 10x8x8 chassis. Contact our team or request the technical spec sheet for precise chassis and transport details.

03Is this crane available for rent in Dubai?

Yes! Red Tiger Heavy Equipment Rental maintains the Terex Demag AC 160-1 in our Dubai fleet. Contact us for availability, rates, and to schedule a site visit.

04What certifications does Red Tiger provide with crane rentals?

All our cranes come with OSHAD certification, Dubai Municipality approval, and Trakhees licensing. We also provide LEEA-certified operators, comprehensive lift plans, method statements, and full documentation packages for every project.

05Can I get a custom lift plan for my project?

Absolutely. Our engineers develop detailed, OSHAD-compliant lift plans for every project, including load charts, outrigger calculations, and method statements. This is provided as standard for all crane rentals.
