Mobile Cranes Available for Rental

LiebherrLTM 1100-4.1

100-Tonne All Terrain Crane

100 t
Max Capacity: 52 m
Telescopic Boom: 84 m
Max Hoist Height: 4 Axles
8 x 6 x 8 Drive

Certified operator and rigger available
Third-party inspected and load tested
Lift plan and permits handled for you

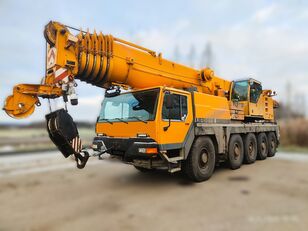

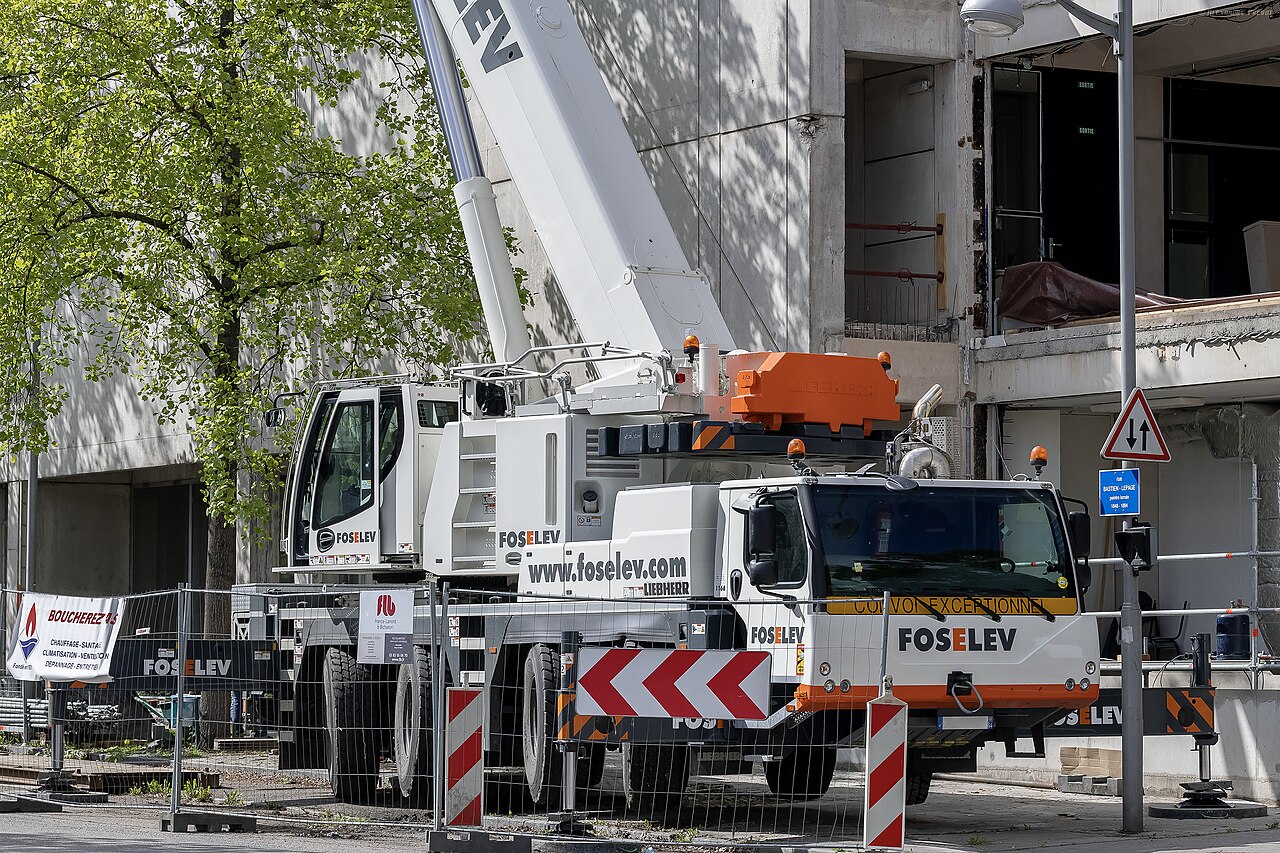

About the Liebherr LTM 1100-4.1

The Liebherr LTM 1100-4.1 is a 4-axle all terrain crane with a maximum capacity of 100 tonnes and a 52 m six-section telescopic boom. With the 19 m swing-away jib and lattice extensions it reaches a hook height of 84 m. It travels at 12 t axle load, powered by a 350 kW Liebherr carrier engine with a separate 145 kW crane engine.

At Red Tiger Heavy Equipment Rental, our Liebherr 1100 comes fully maintained, OSHAD-compliant, and is available for immediate deployment. With our 24/7 emergency support, you can trust that your project will be executed with maximum efficiency.

Typical Applications

Building ConstructionStructural steel, precast, HVAC units and rooftop plant
Industrial InstallationSetting plant equipment, transformers, tanks and vessels
Infrastructure ProjectsBridge beams, metro, road and utility works
Tower Crane ErectionAssembly and dismantling of tower cranes

Technical Specifications

Manufacturer: Liebherr
Model: LTM 1100
Fleet Unit Year: 2006
Machine Type: All terrain mobile crane (4-axle)
Max Lifting Capacity: 100 t at 2.5 m radius
Telescopic Boom Length: 11.5 m to 52 m (1 base + 5 telescopic sections, Telematik)
Lattice/Folding Jib Length: Swing-away jib 10.8 m to 19 m (0°, 20°, 40°); 7 m to 14 m lattice boom extension
Max Hoist Height: 84 m (with biparted swing-away jib)
Max Working Radius: 58 m (with biparted swing-away jib)
Drive / Steering: 8 x 6 standard (axles 2 and 4 driven, axle 3 activatable off-road); 8 x 8 optional; all axles steered
Number of Axles: 4
Carrier Engine: Liebherr D846 A7, 6-cylinder diesel, EU stage 3 / EPA Tier 3
Engine Power: 350 kW (476 hp) carrier; crane engine Liebherr D934S A6, 145 kW (197 hp)
Max Travel Speed: 75 km/h (14.00 R 25 tyres); 80 km/h (16.00 R 25 / 20.5 R 25 tyres)
Max Counterweight: 22 t (12 t basic + 10 t additional)
Overall Length: 13.05 m (carrier length 10.5 m)
Overall Width: 2.75 m (14.00 R 25 or 16.00 R 25 tyres); 2.98 m with 20.5 R 25
Transport Weight / Axle Load: 48 t total, 4 x 12 t axle load

Request Load Chart

Capacities vary with boom, ballast and outrigger configuration. Our engineers confirm figures for your lift.

Questions About This Machine

Rates depend on duration, site and whether you need an operator. Ask and we'll price it.

01What is the maximum lifting capacity of the Liebherr 1100?

The Liebherr 1100 has a maximum lifting capacity of 100t. Exact capacity varies based on boom configuration, outrigger setup, and ballast configuration — contact our engineers for a load chart specific to your lift radius.

02How many axles does this crane have?

This unit is a Liebherr LTM 1100-4.1, which rides on a 4-axle all-terrain chassis. Contact our team or request the technical spec sheet for precise chassis and transport details.

03Is this crane available for rent in Dubai?

Yes! Red Tiger Heavy Equipment Rental maintains the Liebherr 1100 in our Dubai fleet. Contact us for availability, rates, and to schedule a site visit.

04What certifications does Red Tiger provide with crane rentals?

All our cranes come with OSHAD certification, Dubai Municipality approval, and Trakhees licensing. We also provide LEEA-certified operators, comprehensive lift plans, method statements, and full documentation packages for every project.

05Can I get a custom lift plan for my project?

Absolutely. Our engineers develop detailed, OSHAD-compliant lift plans for every project, including load charts, outrigger calculations, and method statements. This is provided as standard for all crane rentals.
