Reference photos of this model. Photo: RamaGaspar, CC BY-SA 4.0, via Wikimedia Commons

Mobile Cranes Available for Rental

TadanoGR700EX

70-Tonne Rough Terrain Crane

70 t
Max Capacity: 44.0 m
Main Boom: 17.7 m
Max Jib: 200 kW
Engine Power

Certified operator and rigger available
Third-party inspected and load tested
Lift plan and permits handled for you

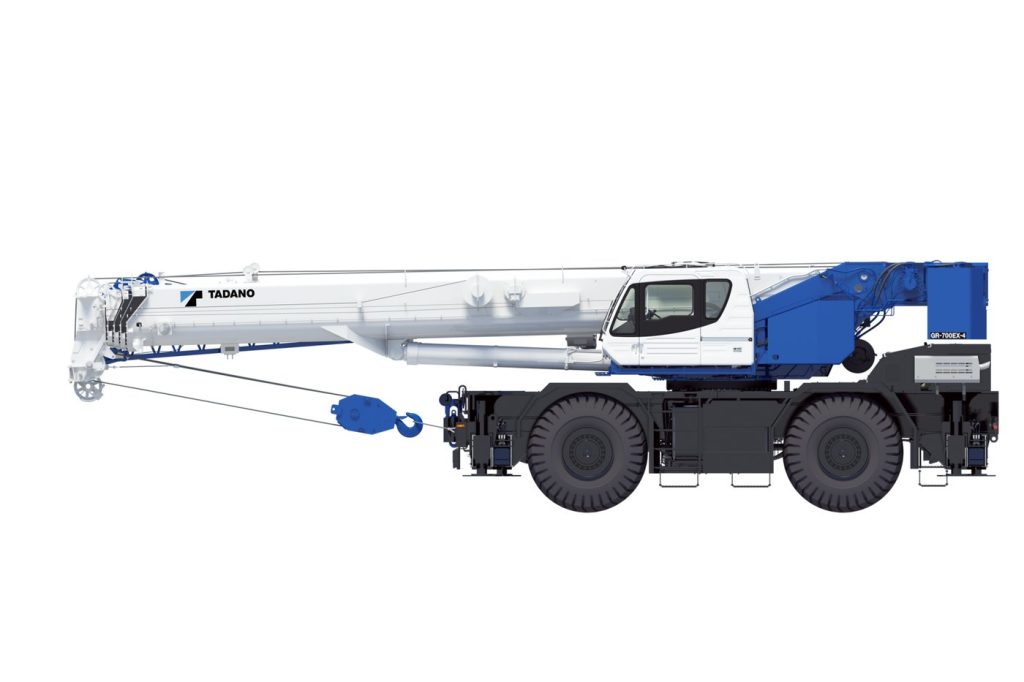

About the Tadano GR700EX

The Tadano GR-700EX is a 70-tonne rough terrain crane with a five-section full power boom from 11.5 m to 44.0 m and a two-stage 17.7 m swingaround jib. The two-axle carrier offers selectable 4×2 or 4×4 drive with four steering modes and is powered by a Mitsubishi 6M60 diesel rated at 200 kW. H-type outriggers extend to a 7.2 m spread.

At Red Tiger Heavy Equipment Rental, our Tadano GR700EX comes fully maintained, OSHAD-compliant, and is available for immediate deployment. With our 24/7 emergency support, you can trust that your project will be executed with maximum efficiency.

Typical Applications

Refinery & Plant WorkShutdowns, pipe racks and equipment setting in tight plots
Construction SitesSteel erection, precast elements, rebar and formwork lifts
Infrastructure ProjectsBridges, utilities, road and metro works
Yard & Port HandlingMoving materials and equipment over rough or unpaved ground

Technical Specifications

Manufacturer: Tadano
Model: GR700EX
Fleet Unit Year: 2020
Machine Type: Rough terrain crane
Max Lifting Capacity: 70,000 kg at 3.0 m
Main Boom Length: 11.5 m to 44.0 m
Boom Sections: 5 (round hexagonal box, full power)
Jib / Fly Jib Length: 9.9 m and 17.7 m (2-stage swingaround, offsets 3.5/25/45 degrees)
Drive / Steering: 4x2 / 4x4 selectable; four steering modes
Number of Axles: 2
Engine: Mitsubishi 6M60-TLU3B diesel
Engine Power: 200 kW at 2,600 rpm
Max Travel Speed: 39 km/h
Gradeability: 30% (engine crankcase limit; 112% computed at stall)
Overall Length: 14,075 mm
Overall Width: 3,315 mm
Overall Height: 3,800 mm
Gross Vehicle Weight: 48,485 kg
Outrigger Spread: 7.2 m fully extended (H type)

Request Load Chart

Capacities vary with boom, ballast and outrigger configuration. Our engineers confirm figures for your lift.

Questions About This Machine

Rates depend on duration, site and whether you need an operator. Ask and we'll price it.

01What is the maximum lifting capacity of the Tadano GR700EX?

The Tadano GR700EX has a maximum lifting capacity of 70t. Exact capacity varies based on boom configuration, outrigger setup, and ballast configuration — contact our engineers for a load chart specific to your lift radius.

02How many axles does this crane have?

Axle count and chassis configuration vary by unit. Contact our team or request the technical spec sheet for the Tadano GR700EX for precise chassis and transport details.

03Is this crane available for rent in Dubai?

Yes! Red Tiger Heavy Equipment Rental maintains the Tadano GR700EX in our Dubai fleet. Contact us for availability, rates, and to schedule a site visit.

04What certifications does Red Tiger provide with crane rentals?

All our cranes come with OSHAD certification, Dubai Municipality approval, and Trakhees licensing. We also provide LEEA-certified operators, comprehensive lift plans, method statements, and full documentation packages for every project.

05Can I get a custom lift plan for my project?

Absolutely. Our engineers develop detailed, OSHAD-compliant lift plans for every project, including load charts, outrigger calculations, and method statements. This is provided as standard for all crane rentals.
